THE BOMB BAY

ALL PHOTOS and content ARE COPY RIGHT OF thomas barner 2000/2001, except where noted.

Here are some views of the bomb bay.

 1.      2. mvc-003s.jpg (72716 bytes)     3. mvc-005as.jpg (86482 bytes)

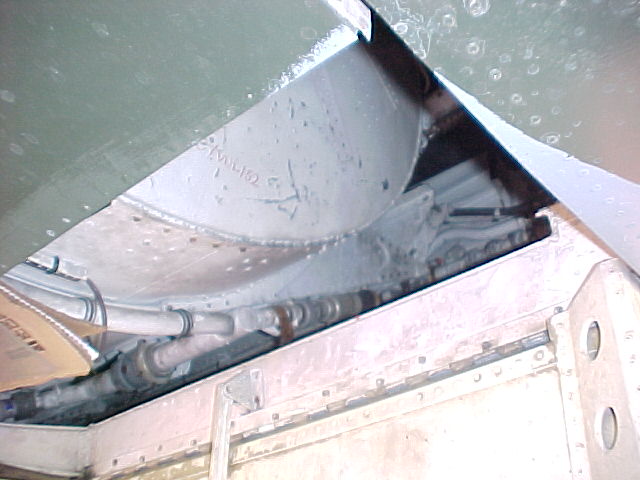

          1. This view you can see the Auxiliary fuel cell in the bomb bay. The view is looking threw the bomb bay access doors in the forward bomb bay.

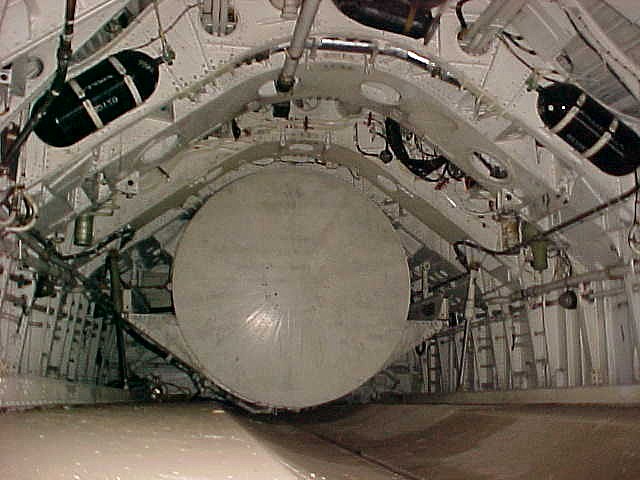

     2.  This view we are in the bomb bay looking forward. There are alot of items to look at. The big tank in the front is the back side of the auxiliary fuel cell.

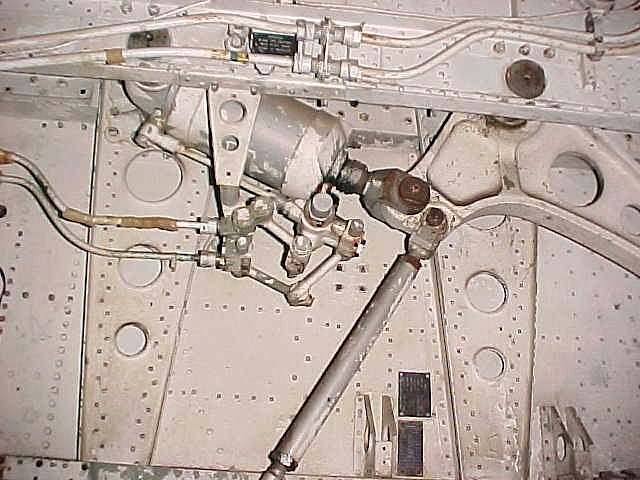

    3.  This view is the aft wall of the bomb bay. Here we can see one of the actuators that drive the bomb door up and down.
